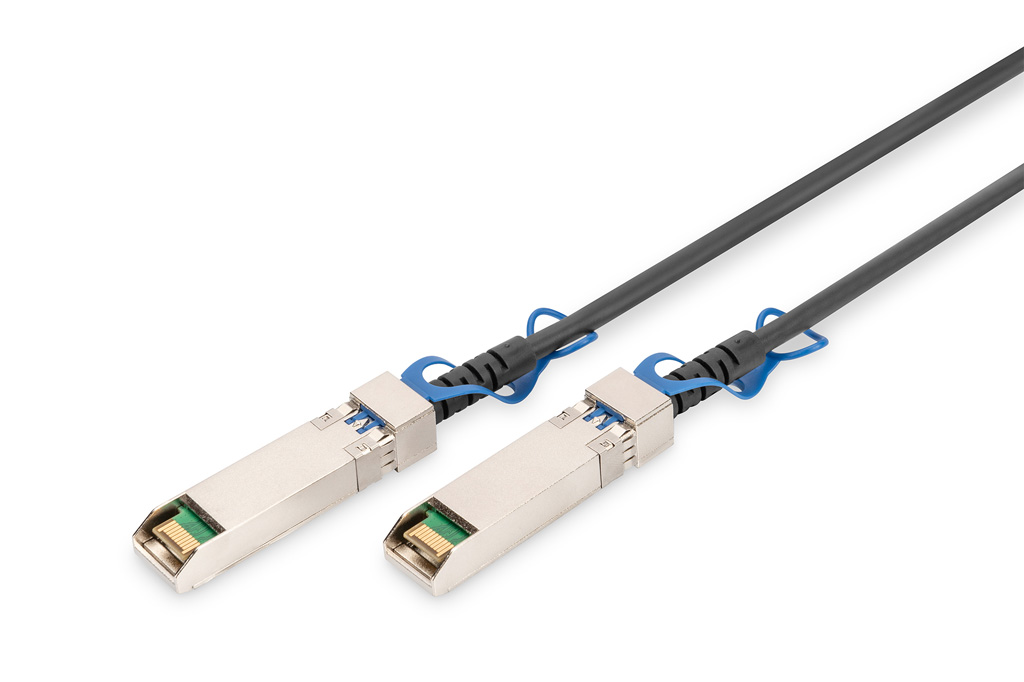

25G DAC Cable SFP28 2m

It is suitable for short reach connection between two SFP28 ports in 25G interconnecting networking applications.

• 2m transmission
• AWG 30 Twinax cable
• Up to 25.88243 Gbps data rate
• Hot-pluggable SFP 20 PIN footprint
• Operating temperature: 0~70°C
• Imporved Pluggable Form Factor (IPF)
• Power: +3.3V supply voltage and SFF-8402
• Connector is compatible with SFF-8432 specification

DIGITUS® 25G SFP28 Passive Direct-Attach Copper Twinax Cable are a high-performance, energy-saving, short-range connectivity solution 25G Etherne application, switches, high peroframnce computer, dtat sotrage arrays and telecom system. It consists of a shielded twinax copper cable with pluggable connectors on either end.Passive DAC cable have no electrical components built into the cable assembly and recommend for short transmission distance. Typically 1~2m and max. 5m lengths.

Détails techniques :

• Number of Lanes : Tx & Rx
• Connector Type: SFP28 to SFP28
• Channel Data Rate: 25.88243 Gbps
• Operating Temperature: 0 to +70°C
• Storage Temperature: -40 to +85°C
• Supply Voltage: 3.3V nominal
• Power comsumption less than 0.5W
• Compliant with MSA SFP28
• Electrical Interface: 20 pins edge connector
• Management Interface: Serial, I²C
• Connector is compatible with SFF-8432 specification
• Compatible with CISCO, D-LINK, ENTERASYS, FINISAR, FORCE 10, NETGEAR, NORTEL, RIVERSTONE, ZTE, ZYXEL etc.
